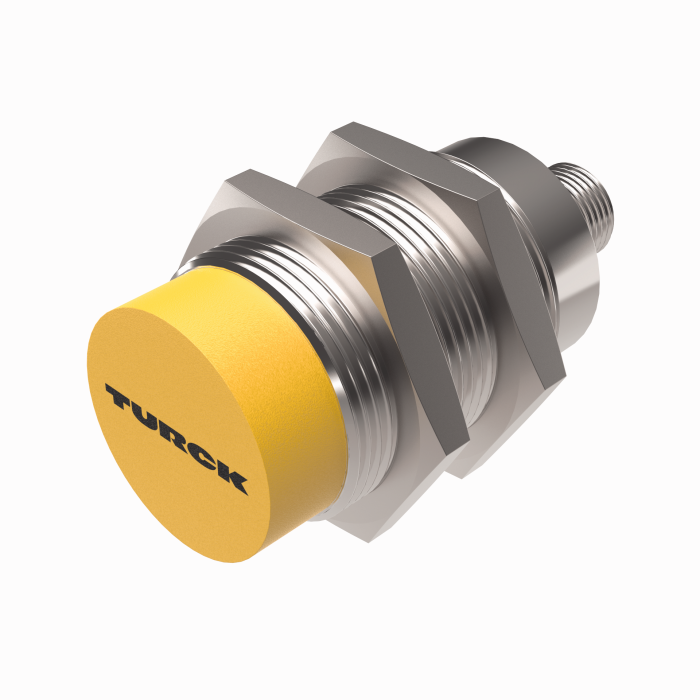

Product TN-M30-IOL-H1141
HF Read/Write Head
IO-Link
Order number: 100000975- Threaded barrel, M30 x 1.5
- Chrome-plated brass
- Process value in 32-bit IO-Link telegram
- M12 × 1 male connector, 4-pin
General data
| EAN | 4047101446173 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | CH |
| Weight | 136 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |

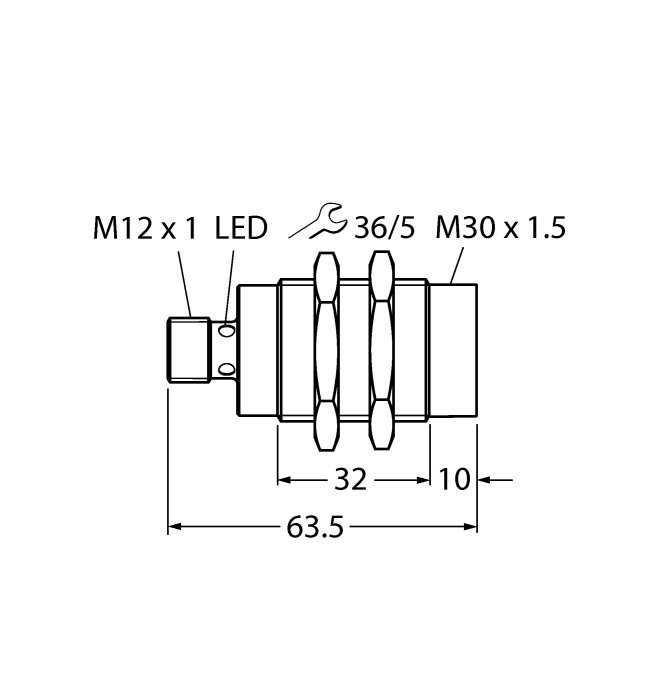

| Design | Threaded barrel |
| Construction size | M30 x 1.5 |
| Read/Write distance max. | 62 mm |
| Mounting | Non-flush |
| Fieldbus Protocol | IO-Link |
| Housing material | Metal, CuZn, Chrome-plated |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Data Sheets
Configuration File
Configuration Manual
Configuration Software
Instructions for Use
Manual
Quick Start Guide
Mounting accessories
|

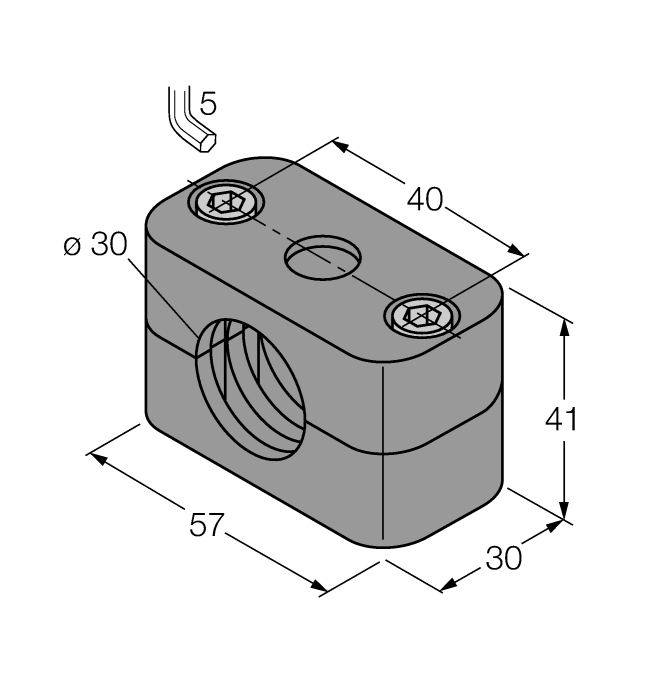

BST-30B
Mounting clamp for threaded barrel sensors, with dead-stop; material: PA6 |
6947216 |
|
BST-30N
Mounting clamp for threaded barrel sensors, without dead-stop; material: PA6 |
6947217 |
|

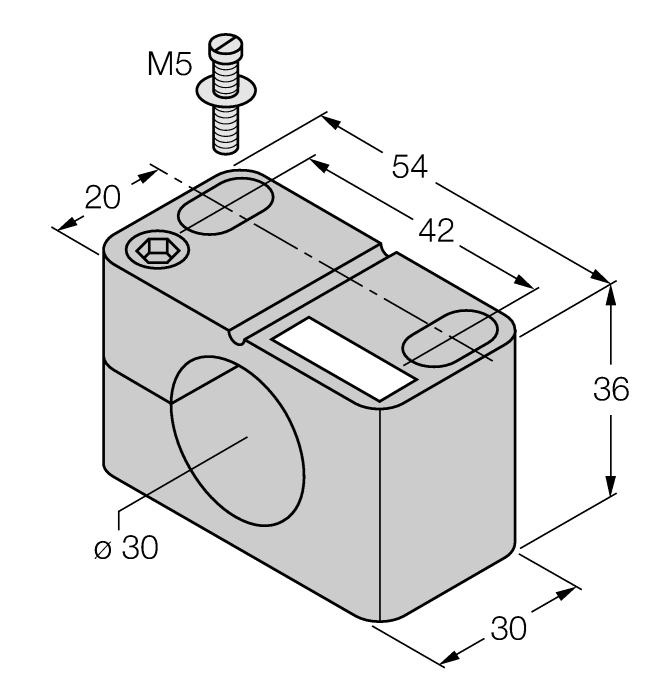

BSS-30
Mounting clamp for smooth and threaded barrel sensors; material: Polypropylene |
6901319 |
Functional accessories
|

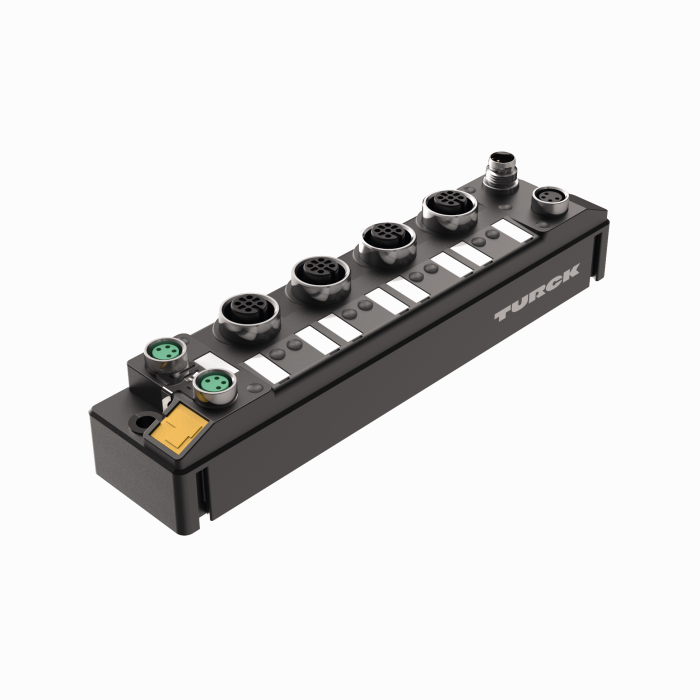

TBEN-S2-4IOL
Compact multiprotocol I/O module, 4 IO-Link Master 1.1 Class A, 4 universal PNP digital channels 0.5 A |
6814024 |
