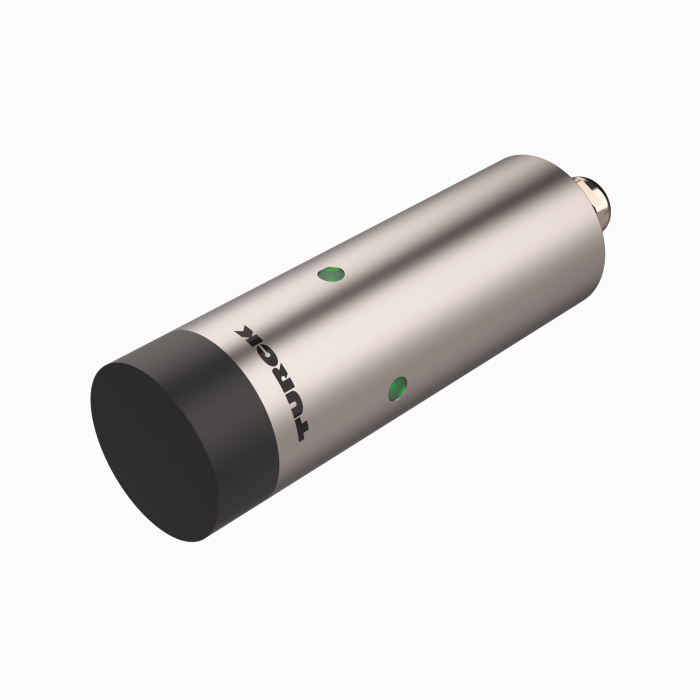

Product TN-R42TC-EX
HF Read/Write Head
For Explosion Hazardous Areas
Order number: 100020166- Smooth barrel
- Ex e terminal chamber with tension springs
- Housing made of V2A stainless steel
- Front cap made of liquid crystal polymer
- Laser-engraved label, permanently legible
- Plastic front cap (active face) must be free of metal (non-flush mounting)
- Powered and operated only via connection to BL ident interface module
- M12 × 1 connector, connection only via BL ident extension cable
- ATEX category II 2 G, Ex Zone 1
- ATEX category II 2 D, Ex Zone 21
General data
| EAN | 4047101526417 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | DE |
| Weight | 573 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Smooth barrel |

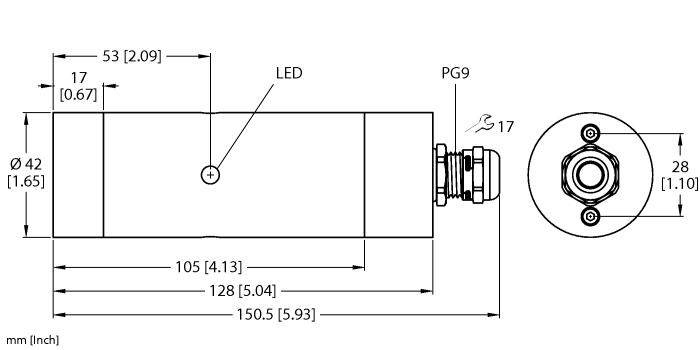

| Construction size | Ø 42 mm |
| Mounting | Non-flush |
| Fieldbus Protocol | Connection to RFID interface |
| Ambient temperature | -20…+40 °C |
| Protection class | IP67 |
| Approvals | ATEX II 2 G, ATEX II 2 D |
