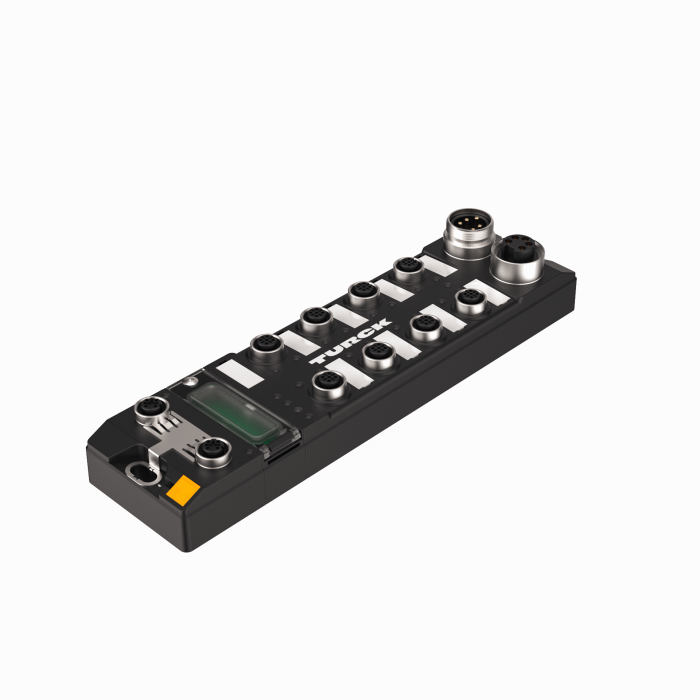

Product TBEN-L5-EN1
Ethernet Spanner
Master to master data exchange, NAT router, 16 digital PNP inputs
Order number: 6814035- Two separate, electrically isolated Ethernet interfaces
- Bidirectional data exchange between two controllers
- Protocols: EtherNet/IP, Modbus TCP and PROFINET
- PROFINET is supported on Ethernet port P2
- 1:1 NAT router
- 10 Mbps/100 Mbps
- 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- 5-pin 7/8″ male connector for power supply
- Galvanically isolated voltage groups support passive safety
- ATEX Zone 2/22
- Input diagnostics per port
General data
EAN | 4047101331707 |
eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
Customs tariff number | 85176200000 |
Country of origin | DE |
Weight | 626 g |
Technical Data
Fieldbus Protocol | Modbus TCP, EtherNet/IP |
Signal type | Digital input |
Connection technology signal | M12 |
Device type | I/O Module, Compact station |
Fieldbus transmission rate | 10/100 Mbps |
Fieldbus connection technology | 2 x M12, 4-pin, D-coded |
Ambient temperature | -40…+70 °C |
Protection class | IP65/IP67/IP69K |
Approvals | ATEX Zone 2/22, cULus |
Data Sheets
Approval
CAD File
Configuration File
Configuration Software
EPLAN Electric P8
Instructions for Use
Manual (MN)
Manufacturer's Declaration
Product Overview
Connectivity accessories — Power supply

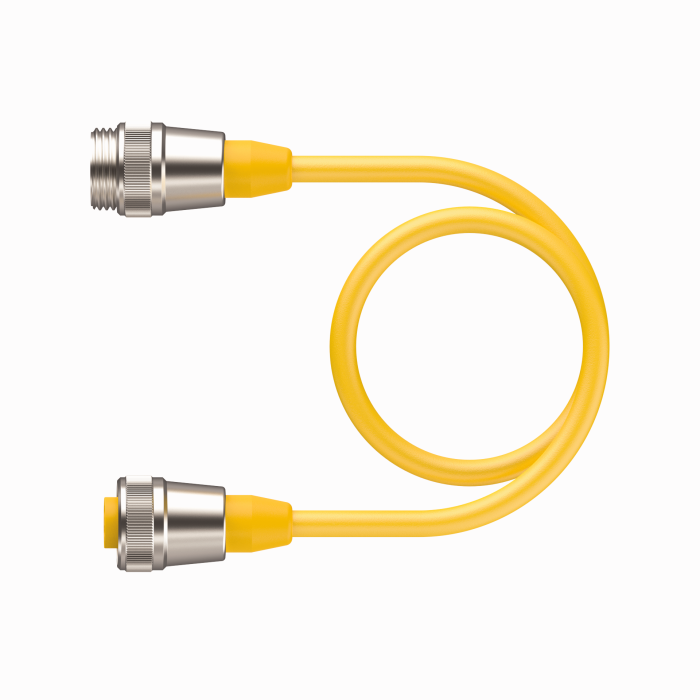

RSM RKM 50-2M
Actuator and Sensor Cordset, Extension Cable, 7/8” Male, Straight, 5-pin, 7/8″, Male, Straight, 4-pin, Cable length: 2 m, Cable jacket: PVC, Yellow, other cable lengths and qualities available, see www.turck.com |
U2282-0 |
Connectivity accessories — I/O

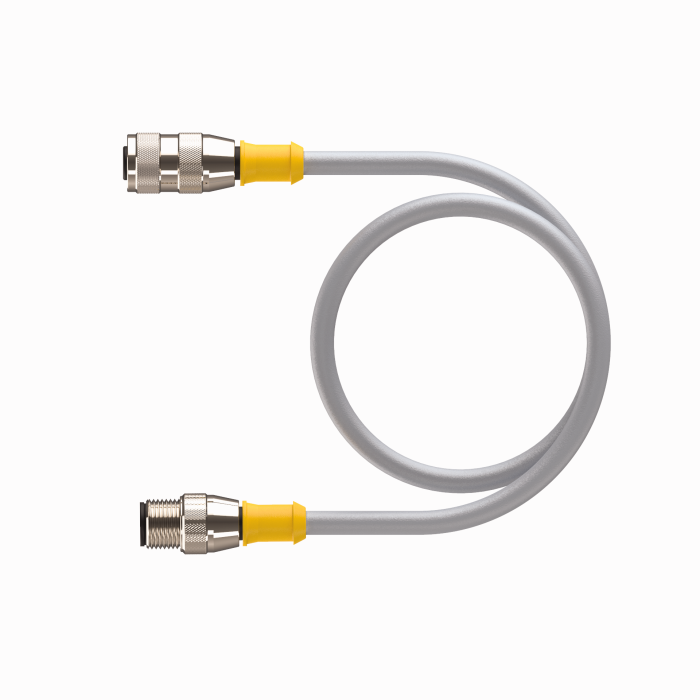

EKRT-ESRT-A4.300-GC2K-2
Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 3-pin, Torque sleeve, M12, Male, Straight, 3-pin, Torque sleeve, Cable length: 2 m, Cable jacket: PVC, Black, other cable lengths and qualities available, see www.turck.com |
100013890 | |
EKRT-ESRT-A4.400-GC2K-2
Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 4-pin, Torque sleeve, M12, Male, Straight, 4-pin, Torque sleeve, Cable length: 2 m, Cable jacket: PVC, Black, other cable lengths and qualities available, see www.turck.com |
UX19102 | |
EKRT-ESRT-A5.500-GC2K-2
Actuator and Sensor Cordset, Extension Cable, M12, Female, Straight, 5-pin, Torque sleeve, M12, Male, Straight, 5-pin, Torque sleeve, Cable length: 2 m, Cable jacket: PVC, Black, other cable lengths and qualities available, see www.turck.com |
UX19110 |
Connectivity accessories — Network

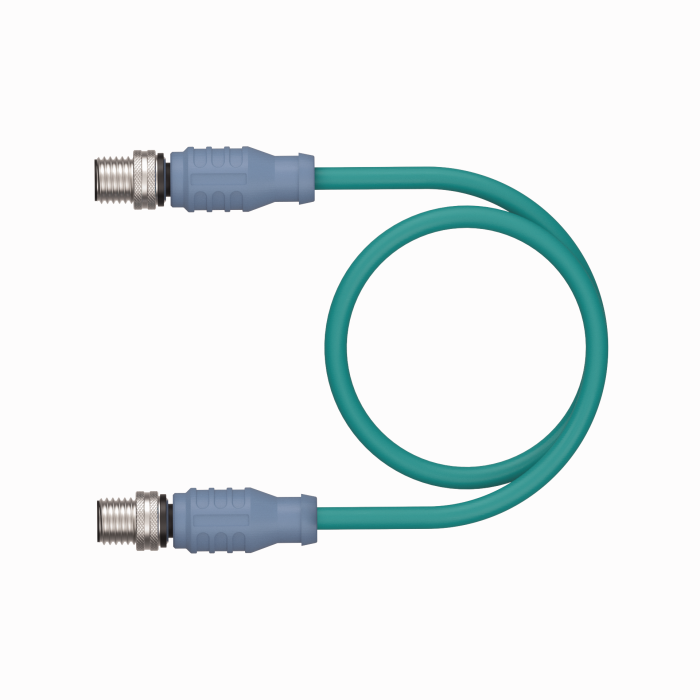

RSSD RSSD 441-2M
Cable for Industrial Ethernet, M12 male connector, D-coded, straight to M12 male connector, D-coded, straight, cable length: 2 m, jacket material: TPE, turquoise |
U-02482 | |

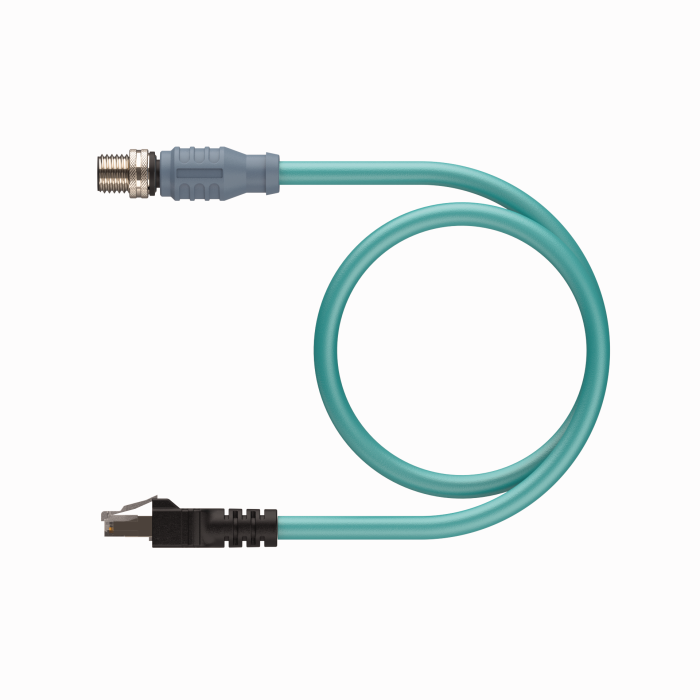

RSSD RJ45 441-2M
Cable for Industrial Ethernet, M12 male connector, D-coded, straight to RJ45 male connector, straight, cable length: 2 m, jacket material: TPE, turquoise |
U-08880 |
