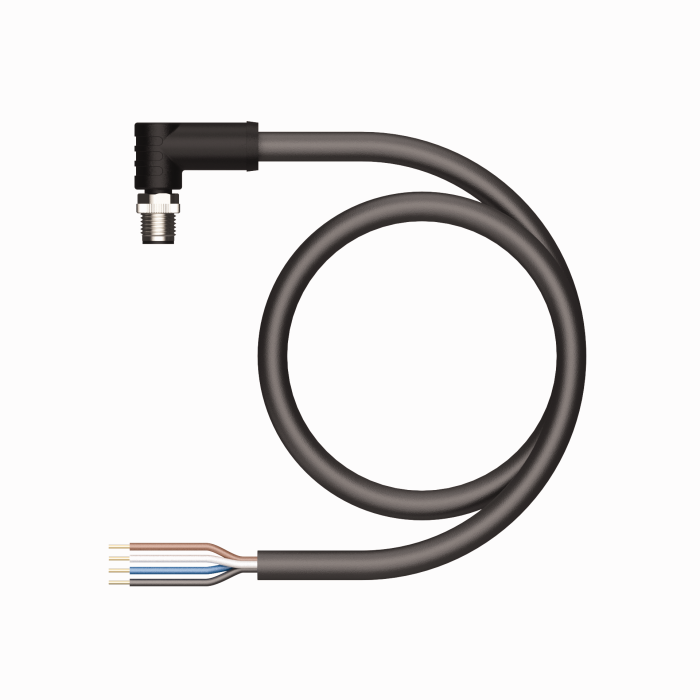

Product WSP46PL-x
Power Cordset
Connection Cable
Order number: 777038985- M12 Power, Male, Right angle, 4-pin, L-code
- Power Tray/Exposed Run/Direct Burial Cable
- Black PVC jacket, 4X16 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, CSA FT1, CSA FT4, IEC 60332-3-22
Technical Data
| Application | Power (>11 Amps) |
| Design | Single-ended |

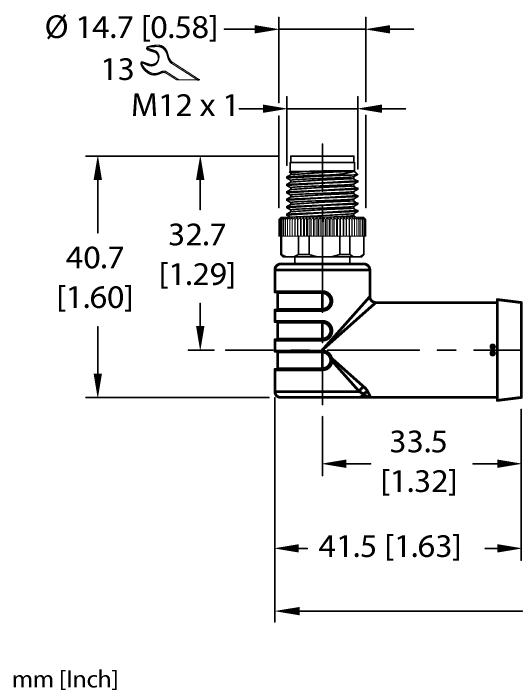

| Connector A | Male, M12 × 1, Right angle, L-code |
| Connector body | Plastic, TPU, Black |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Voltage | 63 V |
| Current | 14 A |
| Cable diameter | Ø 9.14 mm |
| Cable jacket | PVC, Black |
| Number of Conductors | 4 |
| Protection class (When coupled) | IP67 |
| Approvals | RoHS |
