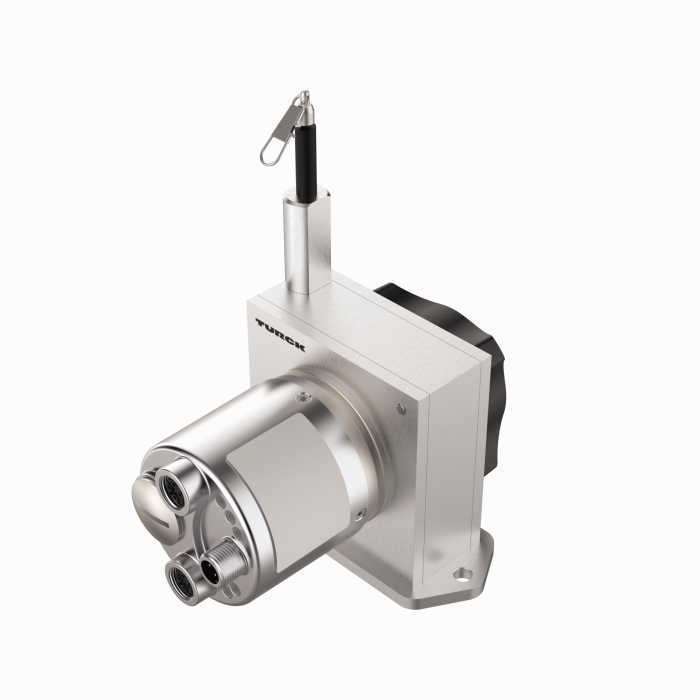

Product DW3000-110-105-9N43B-B3M12
Draw Wire Encoder Assembly
Absolute
Order number: 200017095- Highly dynamic draw-wire sensor
- With permanently installed Ethernet encoder RM-105T10C-9N43B-B3M12
- Measuring principle: optical
- Protection class: IP67
- EtherNet/IP™
- Male connector, M12 x 3, male connector 4-pin
- Resolution: 43 bits on measuring range
- Measuring range can be scaled via teach-in inputs
- Start of the measuring range: UB for min. 1 s on teach 1
- End of the measuring range: UB for min. 1 s on teach 2
General data
| eCl@ss-Code (V5.1.4): | 27270790 -/- Sensor for length, path (not classified) |
Technical Data
| Design | Draw Wire |
| Measuring principle | Optical |
| Communication protocol | EtherNet/IP |
| Housing material | Titanium anodized aluminium |
