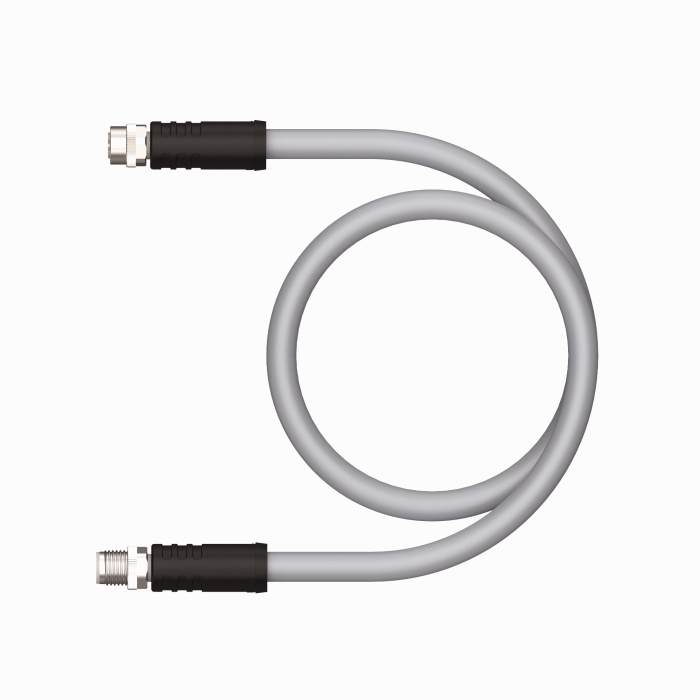

Product RKP56PL-2-RSP56PL
Power Cordset
Extension Cable
Order number: 200004733- M12 Power, Female, Straight, 5-pin, L-code
- M12 Power, Male, Straight, 5-pin, L-code
- Power Tray/Exposed Run/Direct Burial Cable
- Gray PVC jacket, 5X16 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, UL 1061, CSA FT1, CSA FT4
General data
| EAN | 4047101695922 |
| Customs tariff number | 85444290900 |
| Country of origin | MX |
| Weight | 1 g |
Technical Data
| Application | Power (>11 Amps) |
| Design | Double-ended |
| Connector A | Female, M12 × 1, Straight, L-code |
| Number of contacts | 4+FE |
| Connector body | Plastic, TPU, Black |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Connector B | Male, M12 × 1, Straight, L-code |
| Number of contacts | 4+FE |
| Connector body | Plastic, TPU, Black |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Voltage | 63 V |
| Current | 14 A |
| Cable diameter | Ø 10.01 mm |
| Length (L) | 2.0 m |
| Cable jacket | PVC, Gray |
| Number of Conductors | 5 |
| Protection class (When coupled) | IP67 |
| Approvals | RoHS |
