Product NI40R-S32SR-VP44X-H1141
Inductive Sensor
Ring Sensor
Order number: 1440017- Rectangular, height 32 mm
- Plastic, ABS
- Static output behavior
- Sensitivity adjusted via potentiometer
- Modular design, ring probe and switching amplifier also separately mountable
- Output pulse length min. 100 ms
- DC 4-wire, 10…55 VDC
- Changeover contact, PNP output
- M12 x 1 male connector
General data
| EAN | 4047101199932 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 3926909989 |
| Country of origin | DE |
| Weight | 819 g |
Technical Data
| Design | Ring sensor |

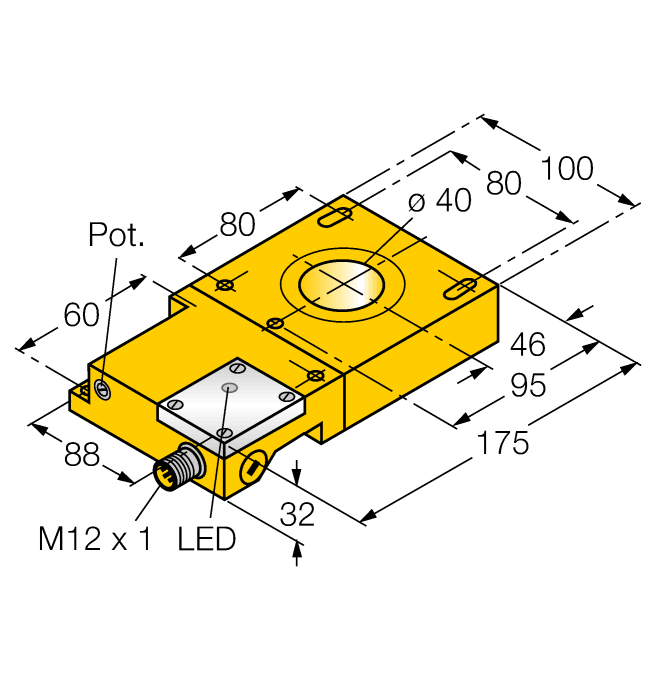

| Construction size | 175 x 100 x 32 mm, S32SR |
| Inside ring diameter D | 40 mm |
| Operating voltage | 10…55 VDC |
| Output function | Complementary contact, PNP |
| Switching frequency | 0.0080 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS |
| Ambient temperature | -25…+70 °C |
| Protection class | IP65 |
| Special features | Ring sensor, static output |
Mounting accessories
|

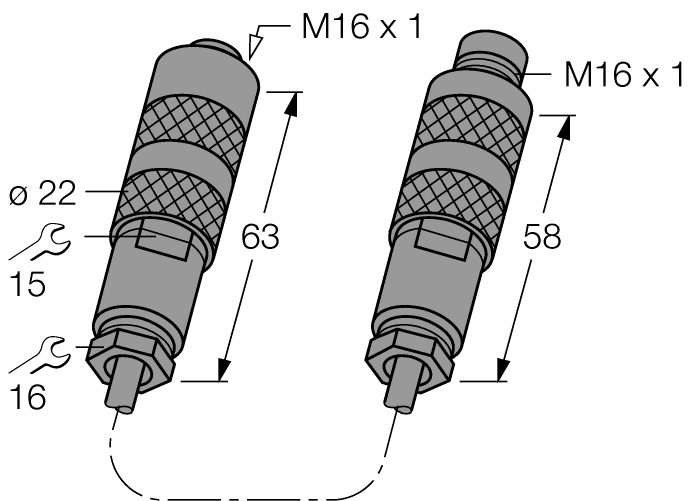

ADAPTER CABLE RING 1.6M
Adapter cable enables separate mounting of ring probe and switching amplifier; coax cable: RG58 C/U 50 Ohm |
14306 |
