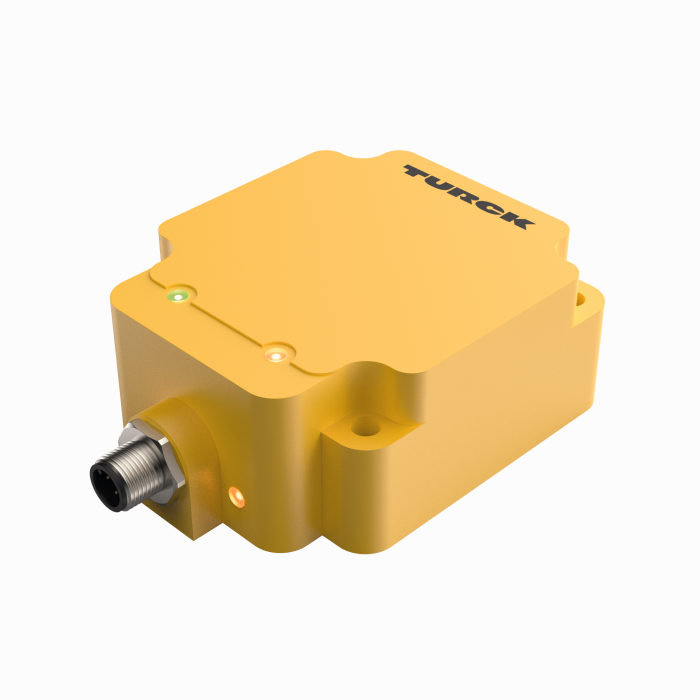

Product NI75U-Q80-RP6X2-H1143
Inductive Sensor
With Extended Switching Distance
Order number: 100001311- Rectangular, height 40 mm
- Active face on top
- Plastic, PBT‐GF30‐V0
- 4 LEDs for optimum view on supply voltage and switching state from any position
- Factor 1 for all metals
- Increased switching distance
- Protection class IP68
- Resistant to magnetic fields
- Auto-compensation protects against pre-damping
- Partially embeddable
- DC 3-wire, 10…30 VDC
- NC contact, PNP output
- M12 x 1 male connector
General data
| EAN | 4047101450958 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 8538908180 |
| Country of origin | DE |
| Weight | 369 g |
Technical Data
| Design | Rectangular |

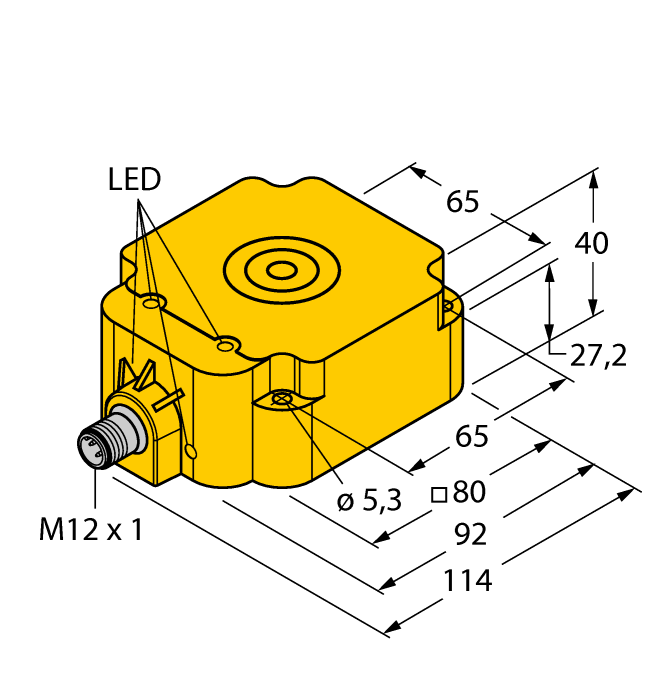

| Construction size | 92 x 80 x 40 mm, Q80 |
| Rated switching distance | 75 mm |
| Mounting | Non-flush |
| Operating voltage | 10…30 VDC |
| Output function | NC contact, PNP |
| Switching frequency | 0.250 kHz |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PBT-GF30-V0, Yellow |
| Ambient temperature | -25…+70 °C |
| Protection class | IP68 |
| Special features | uprox+, Factor 1, Resistant to magnetic fields |
